R52F10A19N-3
R52F10A19N-3

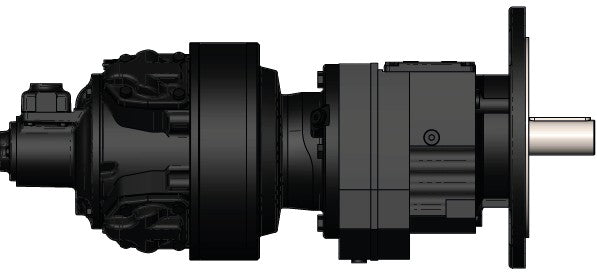

RM510 Piston Air Motor
Max Power: 30 H.P.
Free Speed: 150 RPM to 20 RPM
Min. Starting Torque at 90 PSI: 1450lbs ft.
Ratio: 10:1
Note: Gear ratios may vary based on component availability and will be finalized at the time of quotation.
Mount: Flange Inlet Ports: 1 1/2" NPT
Shaft Size: TBD
Additional Notes: Flange Mount Gearbox
Many ratios are available. Please contact us for more information.
Performance data is hypothetical and doesn't consider reducer efficiency loss. Mufflers are purchased separately.
Muffler Kit Part Number: 519-905
Repair Kit Part Number: 529-911
Please note, this assembly is not ATEX certified. If you require an ATEX certified unit, please inquire.
