VS10BN100R4
VS10BN100R4

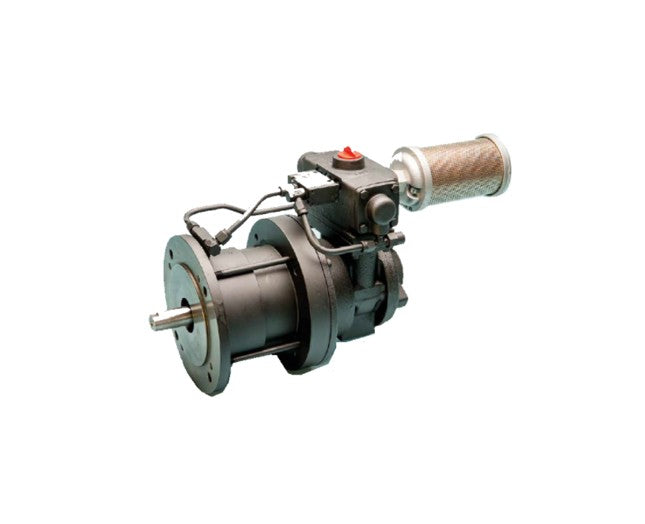

Winch Air Motor Assembly
Part Number: VS10BN100R4
Max Power: 13.7 H.P.
Free Speed: 2400 RPM
Min. Starting Torque at 105 PSI: 27.5 ft.lbs.
Mount: Flange Mount
*Vane motors have a drilled and tapped base for additional mounting possibilities.
Air Inlet: 1 1/4" BSP
NPT port and NEMA brake assemblies are available on request
Note: Need more power? Our team can build a Piston Winch Air Motor assembly. Adding a gearbox is an option. Please contact us for details.
